Hot Sale ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine
1. Double layer roll forming machine
This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
2. Technical details of double layer roll forming machine
TECHNICAL Data for roof panel machine |
| Serial Number | Item | Parameter | Remark |
| | Type | GI/PPGI | |
| Thickness | 0.3-0.7MM | |
| Yield strength(Mpa) | G245-550 | |
Main performance parameters | Forming speed(M/MIN) | 15-20m/m | |
| Machine size(L×W×H) | 9*1.5*1.5 | base on machine design |
| Power supply(KW) | 7.5+2.2 | Main Motor &Hydraulic Motor |
3. Main components of double layer roll forming machine
MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE |
| Name | Model/name | Quantity | Technical description |
| | Hydraulic decoiler or Manual | | Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop. |
| | Material Guiding System | 1 set | For feeding in a right position no Deviation. |
| Precutting Device | 1 set | Pre-cutting or motoraized cut |
| Main Roll Forming Machine | 1 set | About 18 steps base on the design |
| 3.Cutting system | Hydraulic Cutting | | Precutting and postcutting both. |
| 4.Hydraulic system | Hydraulic Station | 1 set | Providing the power of cutting. |
| | | | PLC control system, encoder positioning and cut-to-length automatically, touch screen operating. |
| 6.Racking system | Exit rack | 3 PC | no power. |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

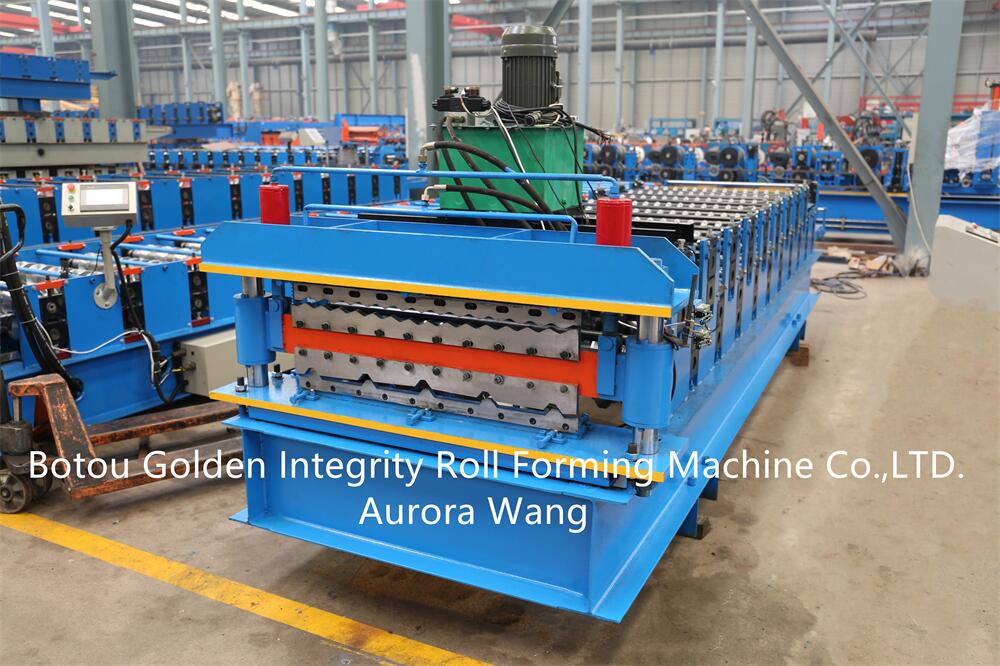

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
|
|
Hot Sale ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine Images
|
